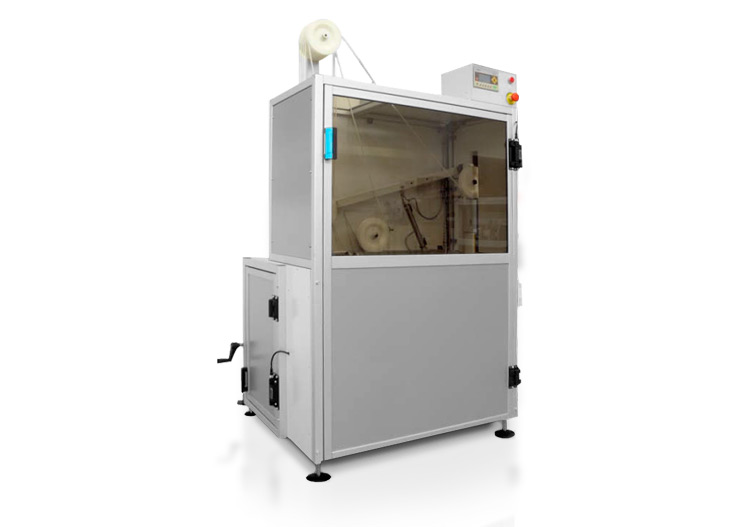

Unwinder FA–600
The motorized unwinder FA-600 is very easy to fill and has an internal memory, the storage capacity is about 8 meters. The lifting and lowering of the cable drum and the movement of the pick-up arms are carried out by a manual crank. The drum is picked up by two cones with a driving mandrel.
| › Cable drum diameter | min. 400 mm – max. 600 mm |
| › Cable drum width | max. 530 mm |
| › Cable drum weight | up to 180 kg |
| › Speed | 3 m/s |
| › Cable diameter | max. 11 mm |
| › Power supply | 230 V, 50 Hz +/- 5 % einphasig |
| › Compressed air | 2 – 8 bar |
