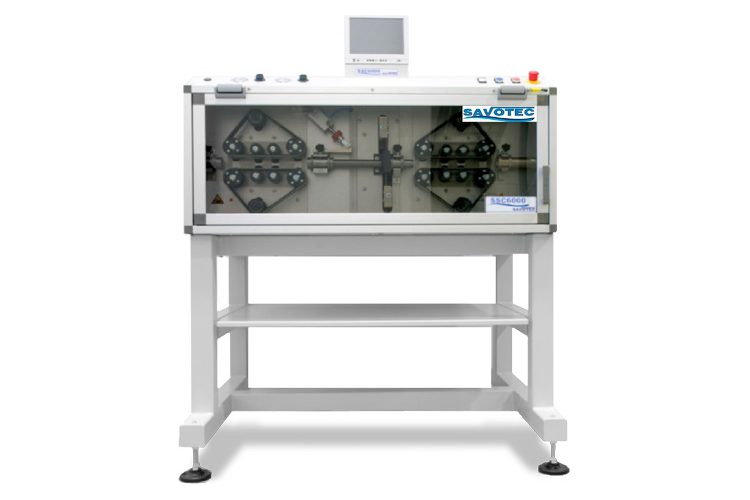

Cutting & stripping machine SSC6000
The SSC6000 is an automatic, electronic cutting and stripping machine capable of handling single and multi-core cables from 5 mm to 35 mm outside diameter.
All movements of the assemblies such as the feed unit and the cutting unit are controlled by powerful brushless motors, which always confirm a perfect and constant cycle – even if the cable has to be machined with a considerable outside diameter or difficult insulations.
The cable movement takes place via belt drive. Without connection of a ring winder, the length measurement takes place via an internal measuring system / brushless motor.
When connecting a ring winder, an additional encoder is required. All necessary parameters, such. B. Stripping length, cable length, cable cross-section, etc. are entered via a touchscreen control panel.
|› Progr. overall length||120 mm – 99 m|
|› Tolerance||0,2 %|
|› Cutting length site 2||output side, max. 300 mm|
|› Cutting length site 1||input side, freely programmable in multi-step function (length depends on cable)|
|› Full strip||Output side possible|
Input side not possible
|› Program memory||unlimited on PC (depending on PC memory)|
|› Cable feed rate||up to max. 3.000 mm/s (depending on cable & processing)|
|› Processable cable||braid, multi-core cable|
|› Cable cross section||4,0 – 240 mm²|
|› Outer diameter||min. 5 – max. 35 mm|
|› Materials||PVC, teflon, silicone, etc.|
|› Power supply||380 V 3 phase ± 5 % – 50/60 Hz|
|› Compressed air||5 – 8 bar (51 – 116 PSI)|
|› Compressed air consumption||1,5 NI/cycle – 6 bar|
|› Dimensions (in mm)||L:1.400 W:1.100 H:1.550|
